MADOKA-R
Spec
BI / Glazed / CE

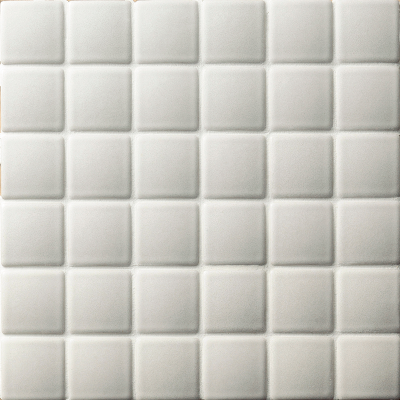

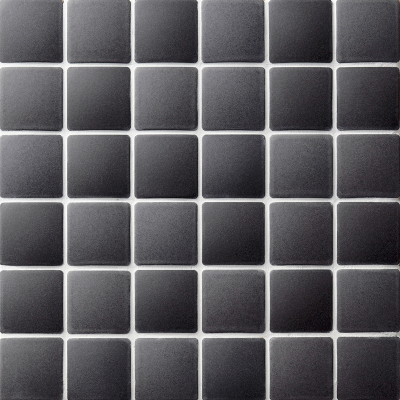

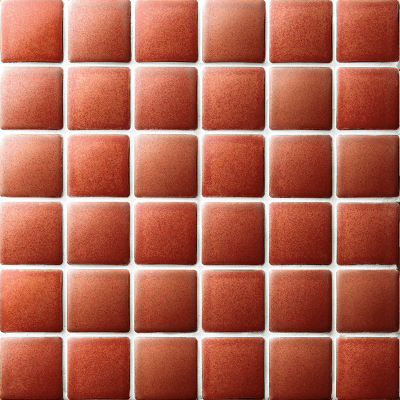

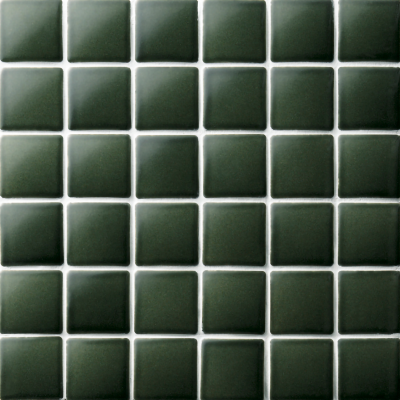

Field Tile IM-45P1/MDK-31~MDK-34
| Size/pc | 45x45mm |
|---|---|
| Size/sht (Actual) | 285x285mm |
| Size/sht (Nominal) | 288x288mm |
| Thickness | 9.5mm |
| Joint | 3mm |
| Quantity/sqm | 12.1shts |
| Quantity/ctn | 18shts |
| Weight/ctn | 22.5kg |
-
![Dimension of sheet]()

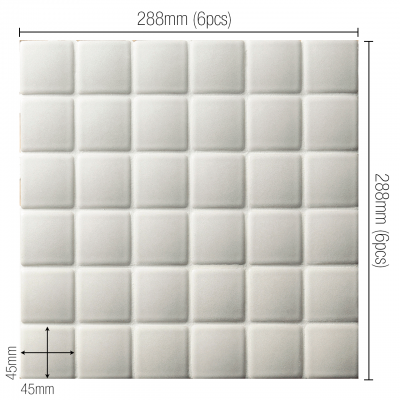

Dimension of sheet -
![Mounting : Front paper]()

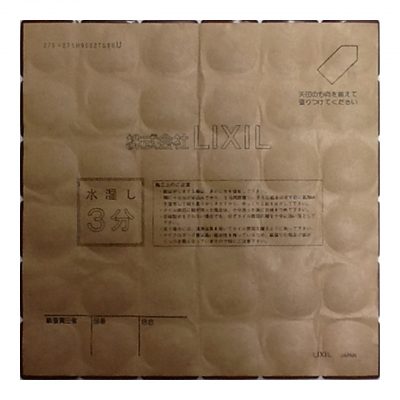

Mounting : Front paper -
![Dimension of piece
( Convex )]()

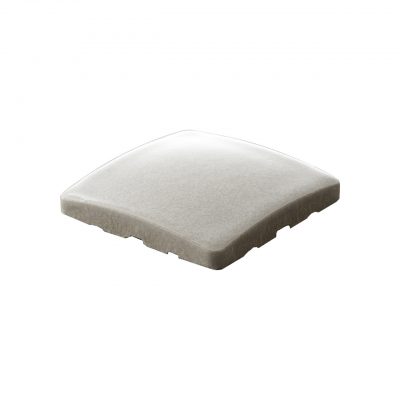

Dimension of piece
( Convex )
Installation Material
Adhesive o
Mortar o
Grouting o
Note:
Grouting is necessary for bathroom wall use.
Handle MDK-35 carefully as it is easy to get scratches and stains may be remarkable due to Metallic glazing.
Has color and glaze variation.
MDK-31 is non stocked items and need 106 sqm (72 cartons) minimum order for each.
MDK-32, MDK-33, MDK-34, MDK-35 are non stocked items and need 53 sqm (36 cartons) minimum order for each.
CE declared
Calculation
You can calculate necessary cartons per area. Please input square meters or square feet, then you can get
approximate number of cartons.
✽ For series with multiple shapes, please select model number before input area.
=0ctn
