BIYUSAI
Spec
BI / Glazed / CE

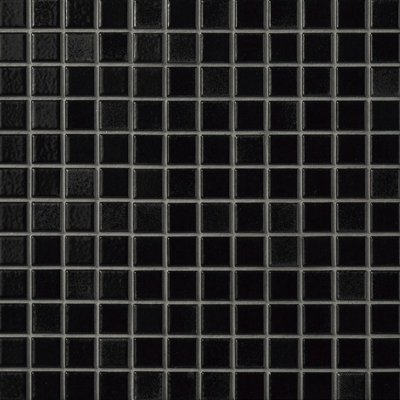

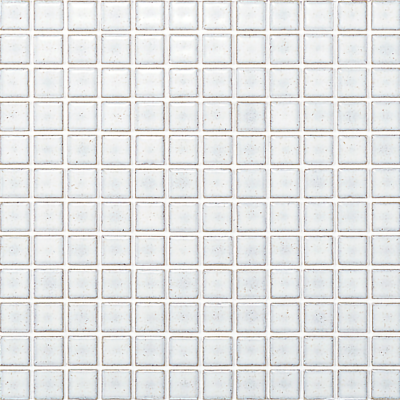

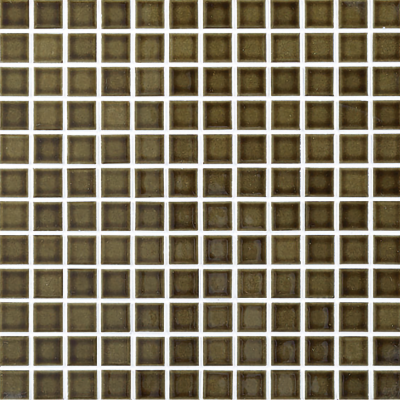

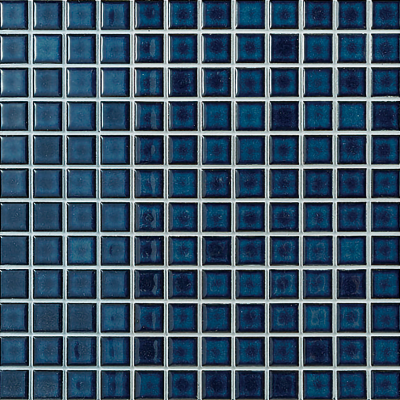

Field Tile ( 25mm ) IM-25P1/BYA-1,BYA-3, BYA-4, BYA-6
| Size/pc | 22.5×22.5mm |
|---|---|
| Size/sht (Actual) | 297.5x297.5mm |
| Size/sht (Nominal) | 300×300mm |
| Thickness | 7mm |
| Joint | 2.5mm |
| Quantity/sqm | 11.5shts |
| Quantity/ctn | 16shts |
| Weight/ctn | 17.9kg |
-

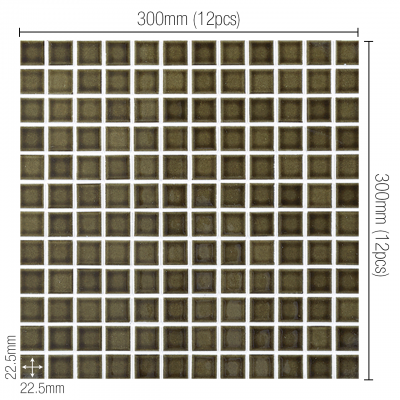

![Dimension of sheet]()
Dimension of sheet -
![Mounting : Back net]()

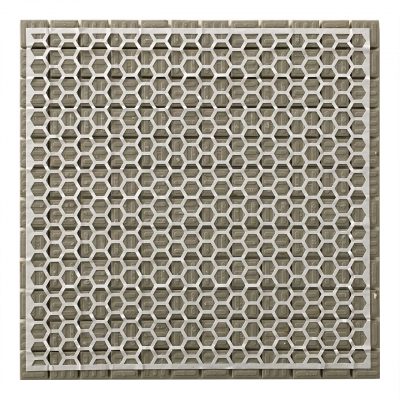

Mounting : Back net

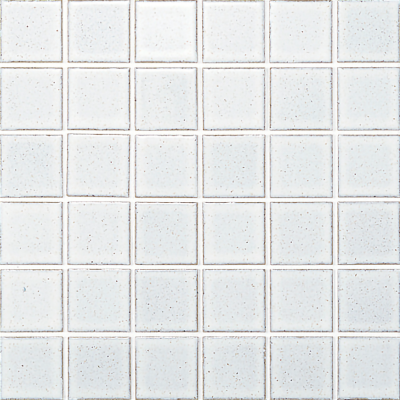

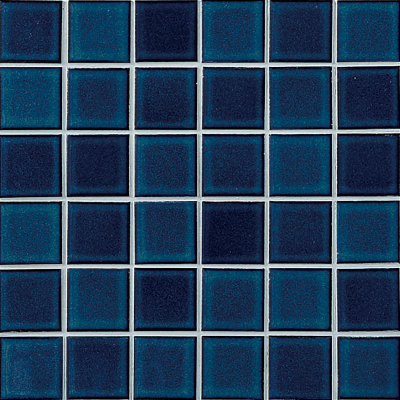

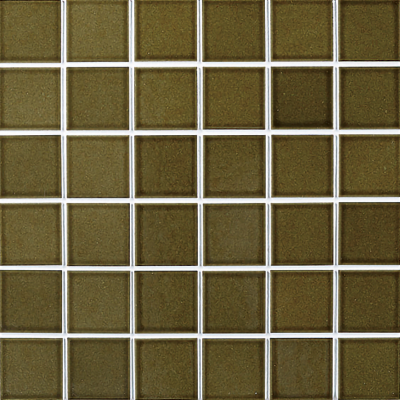

Field Tile ( 50mm ) IM-50P1/BYA-1,BYA-3, BYA-4, BYA-6
| Size/pc | 47×47mm |
|---|---|
| Size/sht (Actual) | 297x297mm |
| Size/sht (Nominal) | 300×300mm |
| Thickness | 7mm |
| Joint | 3mm |
| Quantity/sqm | 11.5shts |
| Quantity/ctn | 16shts |
| Weight/ctn | 19.5kg |
-

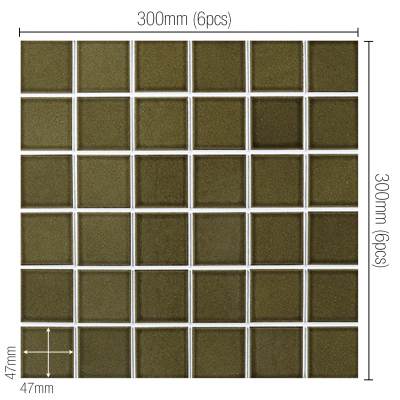

![Dimension of sheet]()
Dimension of sheet

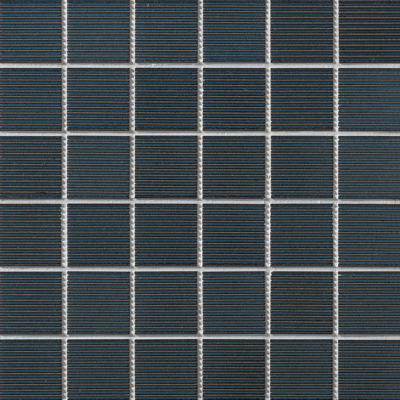

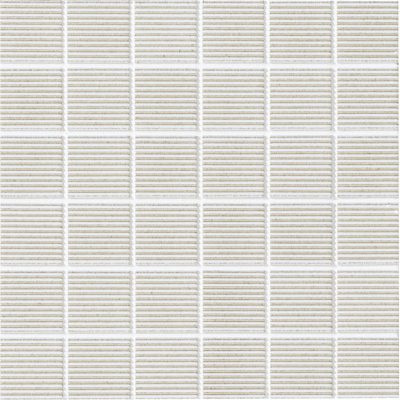

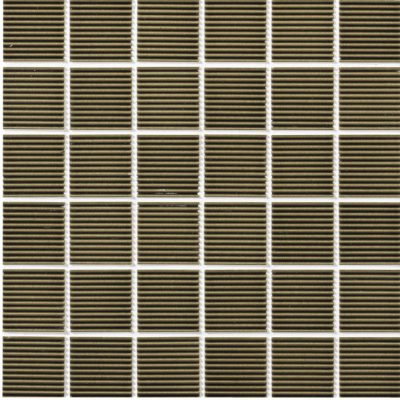

Field Tile ( 50mm Relief) IM-50P1/BYA-1A,BYA-3A, BYA-4A, BYA-6A
| Size/pc | 47×47mm |
|---|---|
| Size/sht (Actual) | 297x297mm |
| Size/sht (Nominal) | 300×300mm |
| Thickness | 7mm |
| Joint | 3mm |
| Quantity/sqm | 11.5shts |
| Quantity/ctn | 16shts |
| Weight/ctn | 19.5kg |
-

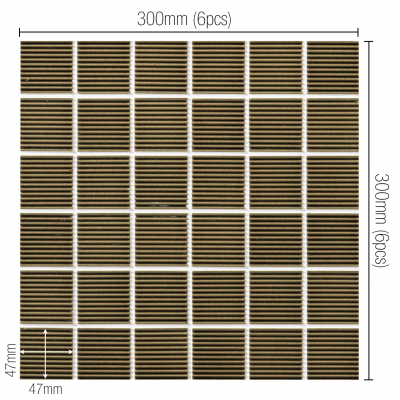

![Dimension of sheet]()
Dimension of sheet

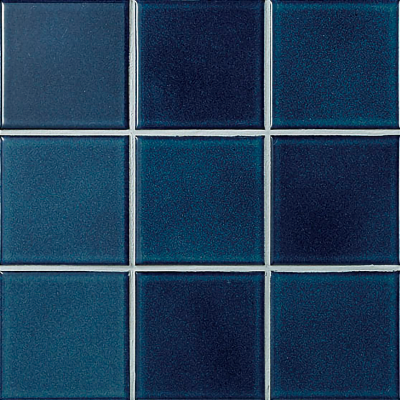

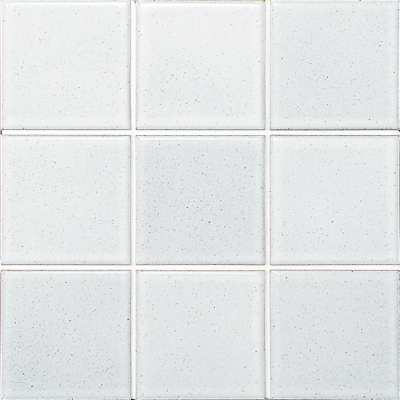

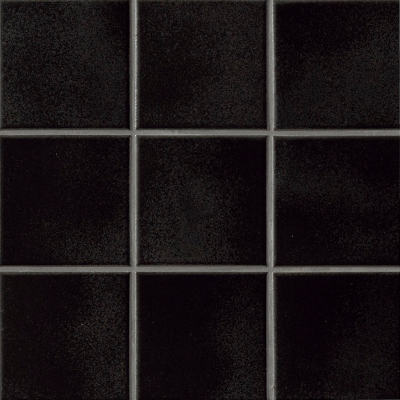

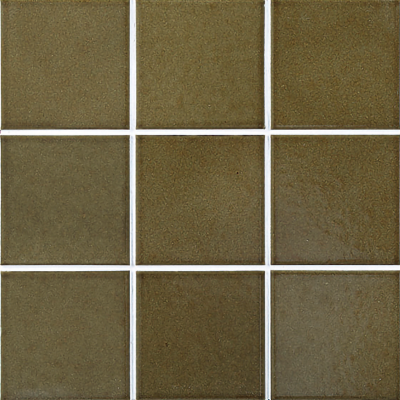

Field Tile ( 100mm ) IM-100P1/BYA-1,BYA-3, BYA-4, BYA-6
| Size/pc | 97×97mm |
|---|---|
| Size/sht (Actual) | 297x297mm |
| Size/sht (Nominal) | 300×300mm |
| Thickness | 7mm |
| Joint | 3mm |
| Quantity/sqm | 11.5shts |
| Quantity/ctn | 16shts |
| Weight/ctn | 20.8kg |
-

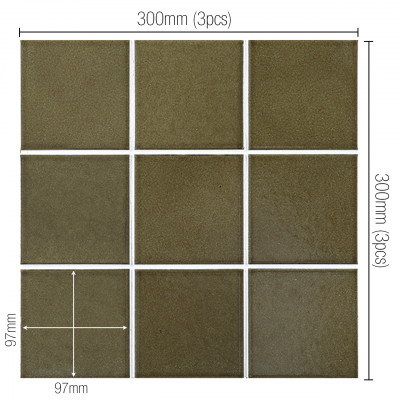

![Dimension of sheet]()
Dimension of sheet

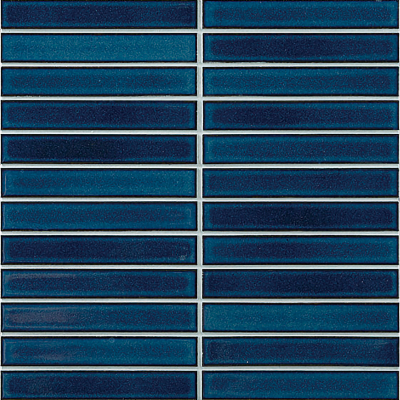

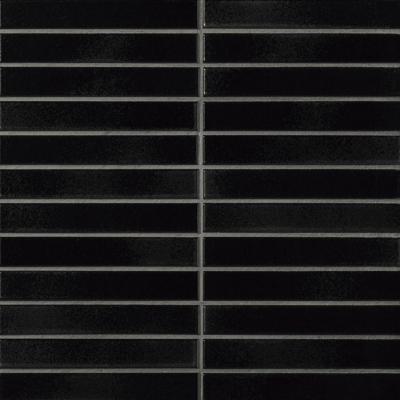

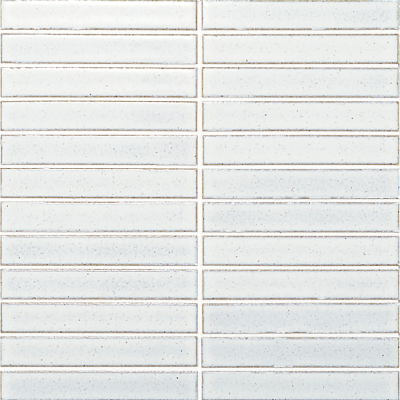

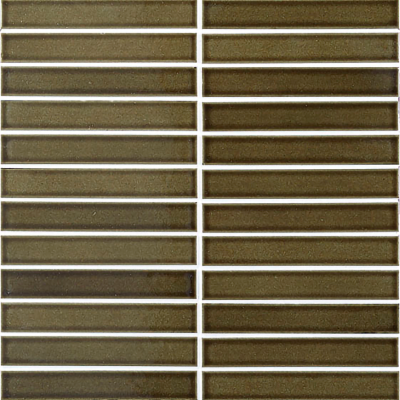

Field Tile ( Border ) IM-1525P1/BYA-1,BYA-3, BYA-4, BYA-6
| Size/pc | 147×22mm |
|---|---|
| Size/sht (Actual) | 297x297mm |
| Size/sht (Nominal) | 300×300mm |
| Thickness | 7mm |
| Joint | 3mm |
| Quantity/sqm | 11.5shts |
| Quantity/ctn | 16shts |
| Weight/ctn | 20kg |
-
![Dimension of sheet]()
Dimension of sheet
Corner Tile IM-15/BYA-1,BYA-3, BYA-4, BYA-6
| Size/pc | 15R×97mm |
|---|---|
| Thickness | 7mm |
| Joint | 3mm |
| Quantity/m | 10psc |
| Quantity/ctn | 30pcs |
| Weight/ctn | 0.8kg |
-

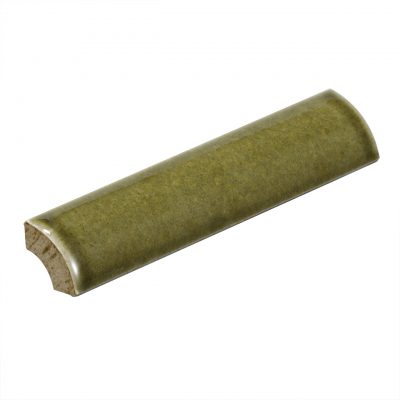

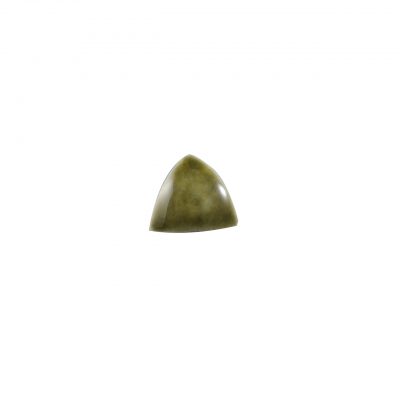

![Dimension of piece]()
Dimension of piece -

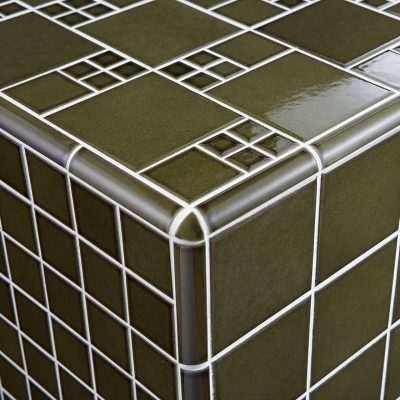

![Installation for corner]()
Installation for corner
Corner Tile IM-5/BYA-1,BYA-3, BYA-4, BYA-6
| Size/pc | ---mm |
|---|---|
| Thickness | 7mm |
| Joint | 3mm |
| Quantity/ctn | 30pcs |
| Weight/ctn | 0.1kg |
-
![Dimension of piece]()
Dimension of piece -
![Installation for corner]()
Installation for corner -
![Presentation materials
PDF file
Click image]()

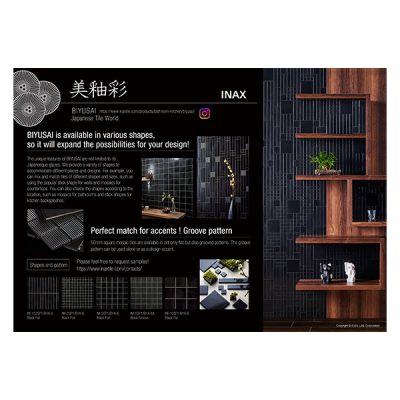

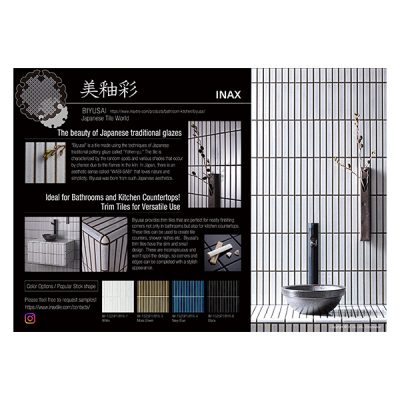

Presentation materials
PDF file
Click image -

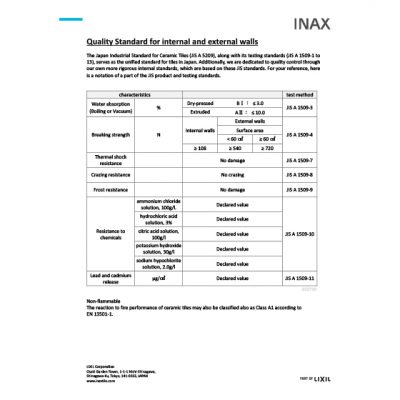

![Presentation materials
PDF file
Click image]()
Presentation materials
PDF file
Click image
Installation Material
Adhesive o
Mortar ×
Grouting o
Note:
Joint width of IM-25P1 is 2.5mm while they are 3mm for all other sizes.
Has size variation.
Has color and glaze variation.
Colors of different sizes may not be exactly same even they belong to same color code.
CE declared
