Corner-A (NUANCE)
Spec
Corner Tile KI‐55/NY1H~NY11H
| Size/pc | (48＋45.5)x(48＋45.5)mm |
|---|---|
| Thickness | 6.5mm |
| Joint | 3mm |
| Quantity/m | --- |
| Quantity/ctn | 25pcs |
| Weight/ctn | 2.5kg |
-

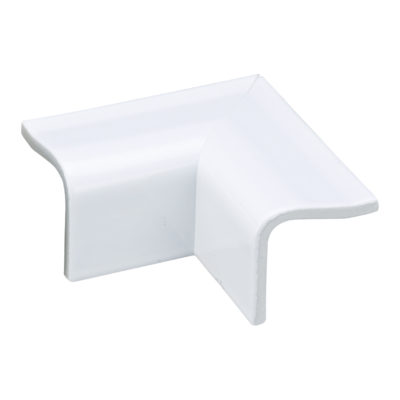

![Dimension of piece]()
Dimension of piece -

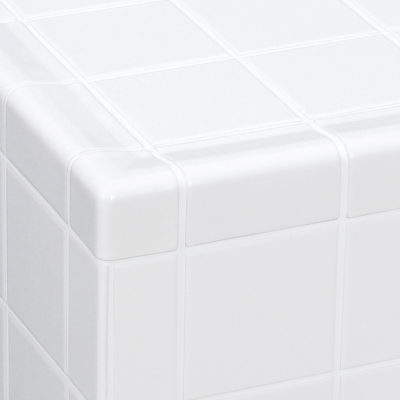

![Installation for corner]()
Installation for corner
Corner Tile KI‐551/NY1H~NY11H
| Size/pc | (48＋45.5)×98mm |
|---|---|
| Thickness | 6.5mm |
| Joint | 3mm |
| Quantity/m | 10pcs |
| Quantity/ctn | 30pcs |
| Weight/ctn | 3.6kg |
-

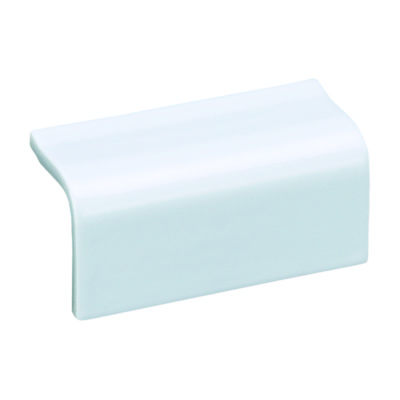

![Dimension of piece]()
Dimension of piece
Corner Tile KI‐1155/NY1H~NY11H
| Size/pc | --- |
|---|---|
| Thickness | 6.5mm |
| Joint | 3mm |
| Quantity/m | --- |
| Quantity/ctn | 8pcs |
| Weight/ctn | 1.2kg |
-

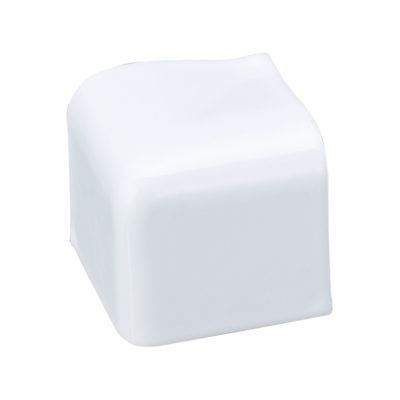

![Dimension of piece]()
Dimension of piece
Installation Material
Adhesive o
Mortar ×
Grouting o
Note:
Joint width of IM-25P1 is 2.5mm while they are 3mm for other two sizes.
