CROCHET
Spec
BI / Unglazed / CE

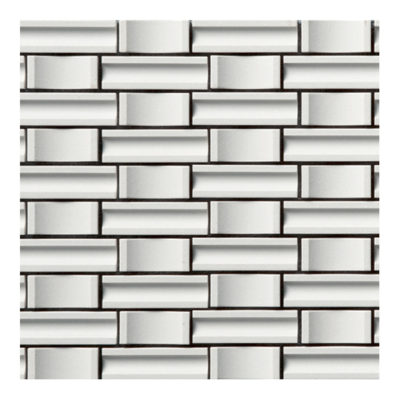

Field Tile HAL-30B/RYC-1~RYC-3
| Size/pc | 87x27mm 57x27mm |
|---|---|
| Size/sht (Actual) | 297x297mm |
| Size/sht (Nominal) | 300x300mm |
| Thickness | 12mm, 15mm Mix |
| Joint | 3mm |
| Quantity/sqm | 11.2shts |
| Quantity/ctn | 12shts |
| Weight/ctn | 22.9kg |
-
![Dimension of sheet]()

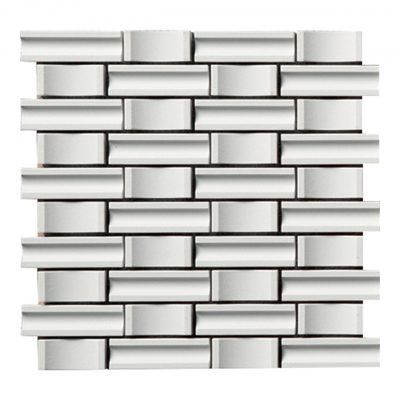

Dimension of sheet -

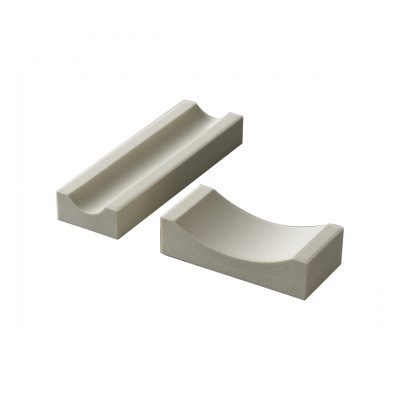

![Dimension of piece
( 2 type mix )]()
Dimension of piece
( 2 type mix ) -

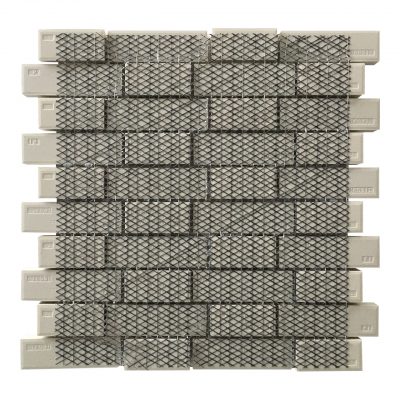

![Mounting : Back net]()
Mounting : Back net
Corner Tile HAL-C/RYC-1~RYC3
| Size/pc | 87x27mm 57x27mm |
|---|---|
| Size/sht (Actual) | 87x297mm |
| Size/sht (Nominal) | 90×300mm |
| Thickness | 12mm, 15mm Mix |
| Joint | 3mm |
| Quantity/m | 6.7shts |
| Quantity/ctn | 24shts |
| Weight/ctn | 11.6kg |
-

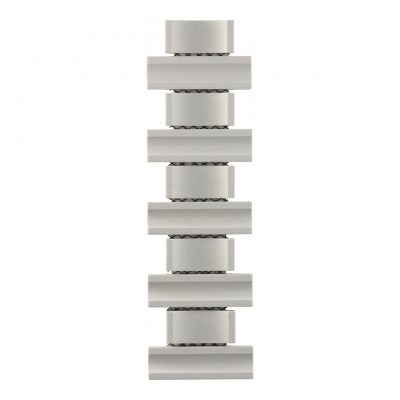

![Dimension of sheet]()
Dimension of sheet -

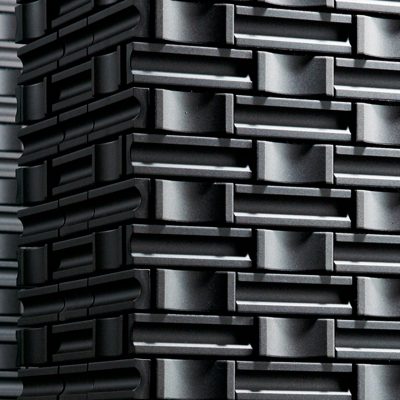

![Installation for corner
Link to more information]()
Installation for corner
Link to more information
Installation Material
Adhesive o
Mortar ×
Grouting ×
Note:
Gray net may be visible from between joints.
Colors may vary even within the same batch.
Joint widths may vary even within a sheet.
CE declared
Calculation
You can calculate necessary cartons per area. Please input square meters or square feet, then you can get
approximate number of cartons.
✽ For series with multiple shapes, please select model number before input area.
=0ctn
