HIIRONE GLAZED
Spec
AII / Glazed (GNH,GBS, GKA)
AII / Unglazed (GEE)

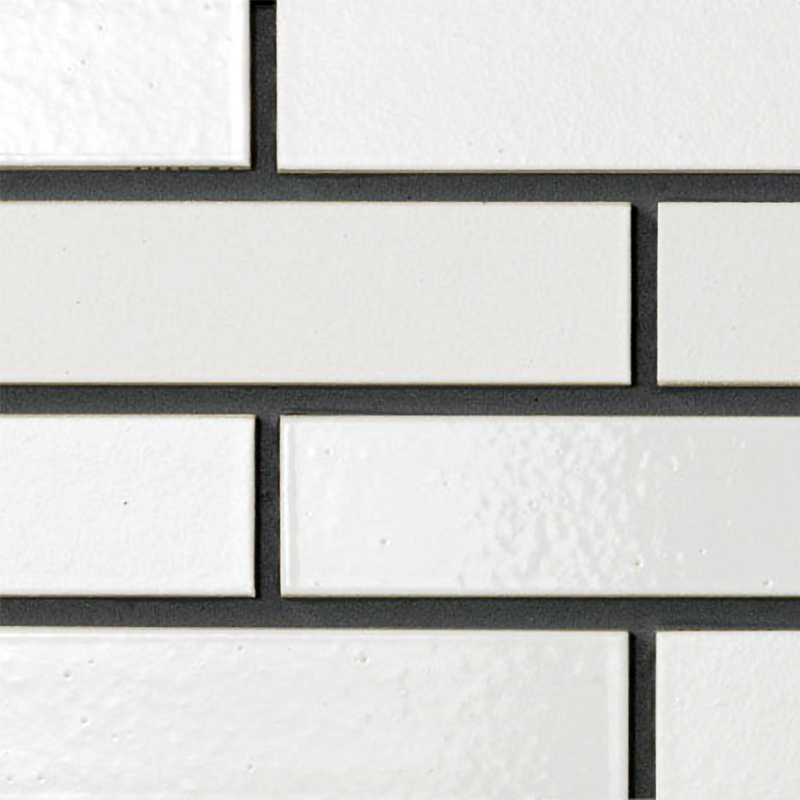

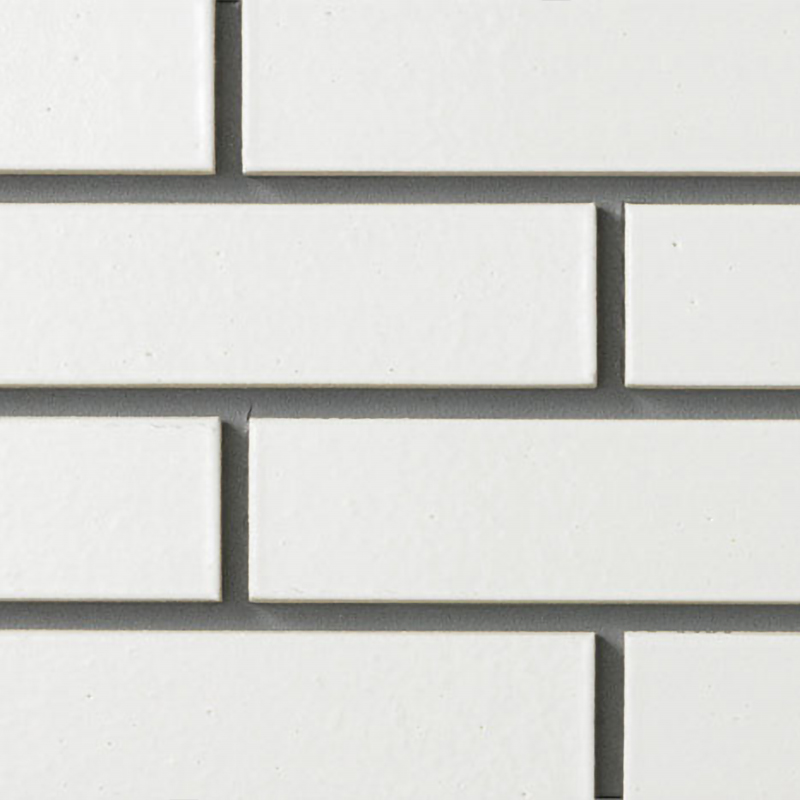

Field Tile FC-2/GNH-J1~GBS-1C
| Size/pc | 239×60mm |
|---|---|
| Thickness | 13mm |
| Joint | Horizontal 10mm Vertical 8mm |
| Quantity/sqm | 58pcs |
| Quantity/ctn | 56pcs |
| Weight/ctn | 23.4kg |
-
![Dimension of piece]()
Dimension of piece
Corner Tile FC-13/GNH-J1~GBS-1C
| Size/pc | (173.5+50)×60mm |
|---|---|
| Thickness | 13mm |
| Joint | Horizontal 10mm Vertical 8mm |
| Quantity/m | 15pcs |
| Quantity/ctn | 48pcs |
| Weight/ctn | 17.9kg |
Installation Material
Adhesive o
Mortar o
Grouting o*
*Can not grout on rough surface
Note:
Back keys are visible from side when not grouted
Calculation
You can calculate necessary cartons per area. Please input square meters or square feet, then you can get
approximate number of cartons.
✽ For series with multiple shapes, please select model number before input area.
=0ctn
