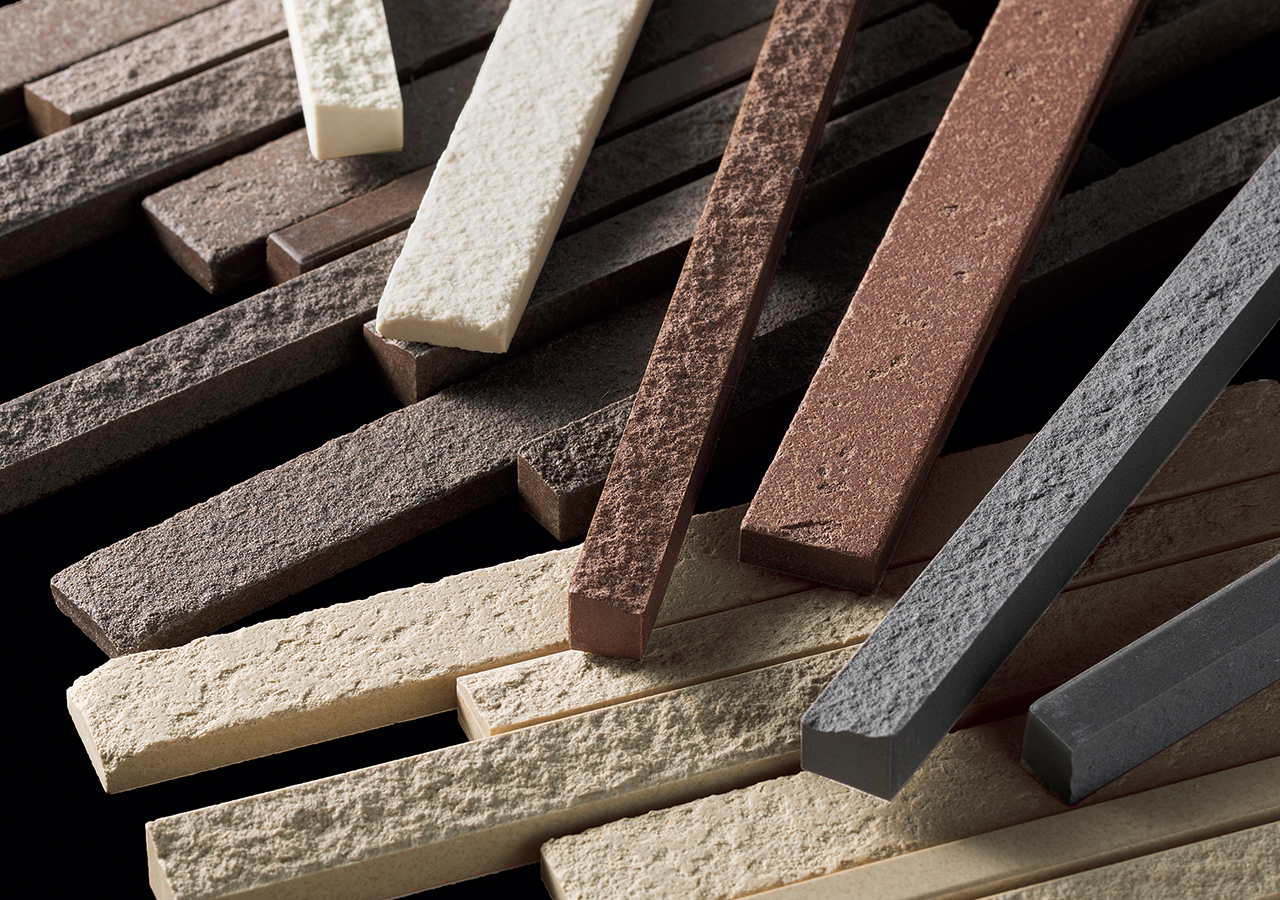

LUMINOS
Spec
BI / Unglazed / CE

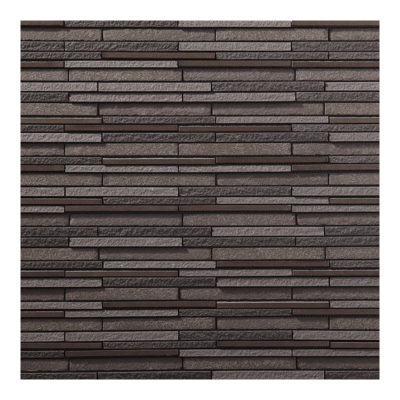

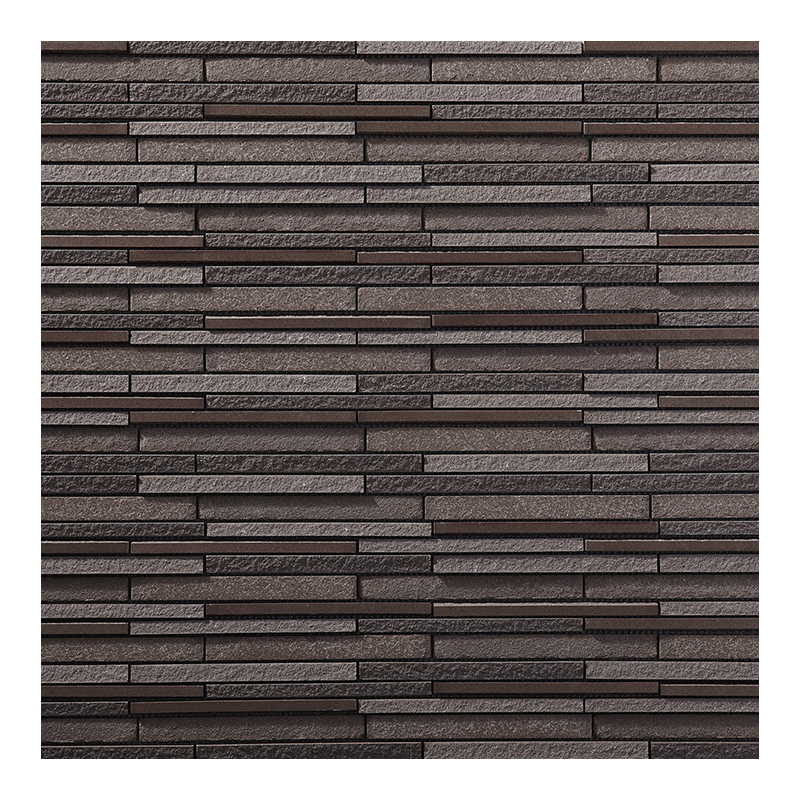

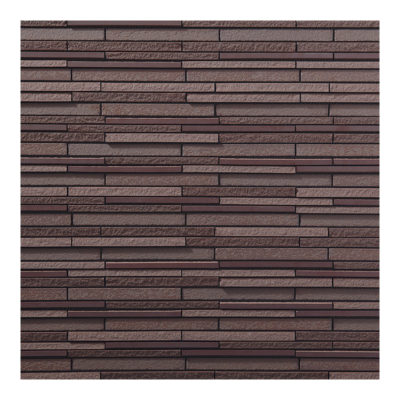

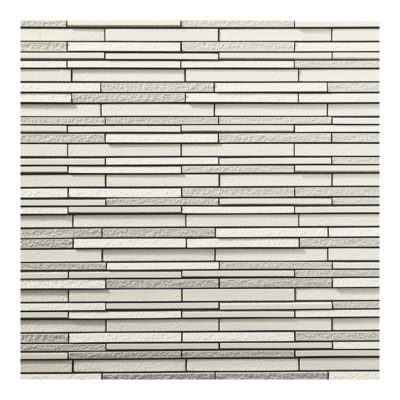

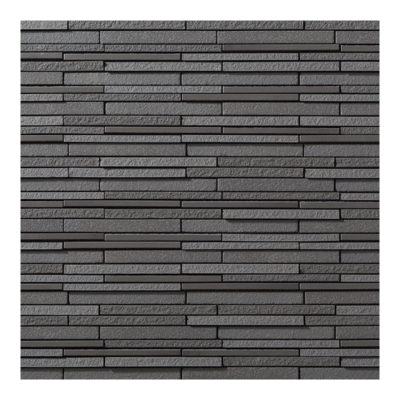

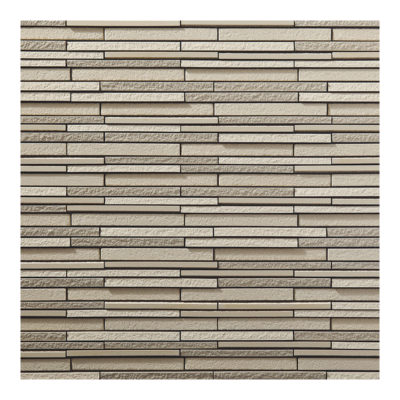

Field Tile HAL-R/LNS-1~LNS-5
| Size/pc | 235x14mm 235x18.5mm 235x25mm |
|---|---|
| Size/sht (Actual) | 235x297mm |
| Size/sht (Nominal) | 237x300mm |
| Thickness | 16mm |
| Joint | Horizontal 3mm Vertical 2mm |
| Quantity/sqm | 14.1shts |
| Quantity/ctn | 12shts |
| Weight/ctn | 19.4kg |
-

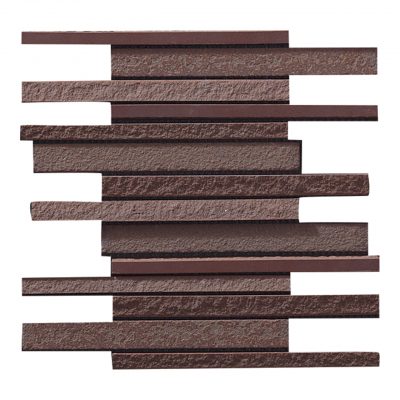

![Dimension of sheet]()
Dimension of sheet -

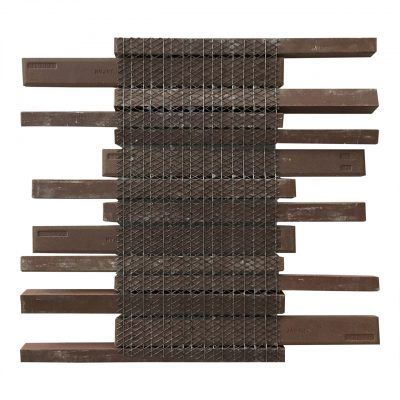

![Mounting : Back net]()
Mounting : Back net
Corner Tile HAL-C/LNS-1~LNS-5
| Size/pc | 153x14mm 153x18.5mm 153x25mm 80x14mm 80x18.5mm 80x25mm |
|---|---|
| Size/sht (Actual) | 153x297mm |
| Size/sht (Nominal) | 155x300mm |
| Thickness | 16mm |
| Joint | Horizontal 3mm Vertical 2mm |
| Quantity/m | 6.7shts |
| Quantity/ctn | 24shts |
| Weight/ctn | 19.2kg |
-

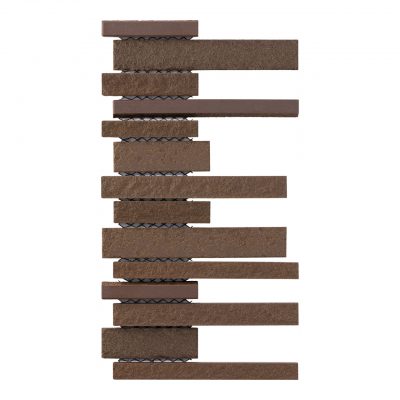

![Dimension of sheet]()
Dimension of sheet -
![Installation for corner
Link to more information]()
Installation for corner
Link to more information
Installation Material
Adhesive o
Mortar ×
Grouting ×
Note:
Gray net may be visible from between joints.
Colors may vary even within the same batch.
Joint widths may vary even within a sheet.
CE declared
Calculation
You can calculate necessary cartons per area. Please input square meters or square feet, then you can get
approximate number of cartons.
✽ For series with multiple shapes, please select model number before input area.
=0ctn
