RHYTHMIC II
Spec
BI / Unglazed / CE

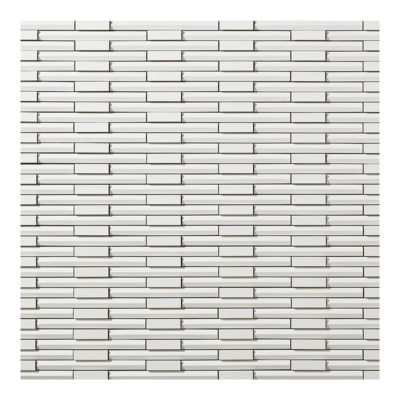

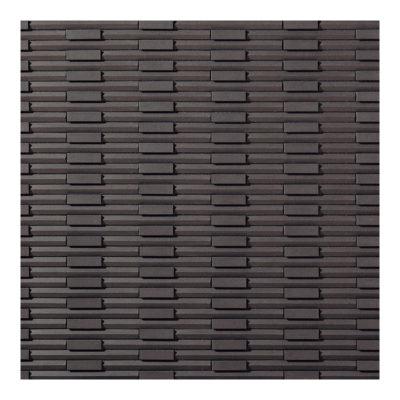

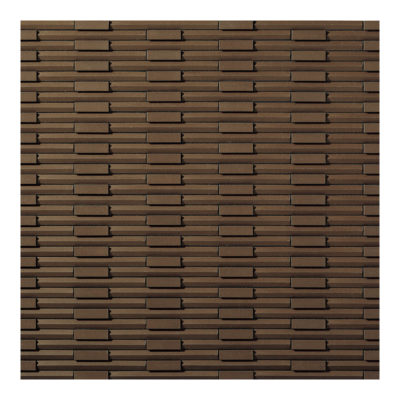

Field Tile HAL-20B/RYS-1~RYS-3
| Size/pc | 222.5x19.5mm 70.5x19.5mm |
|---|---|
| Size/sht (Actual) | 298x298.1mm |
| Size/sht (Nominal) | 300x300mm |
| Thickness | 10mm, 13mm Mix |
| Joint | Horizontal 1.9mm Vertical 2mm |
| Quantity/sqm | 11.2shts |
| Quantity/ctn | 12shts |
| Weight/ctn | 21.1kg |
-

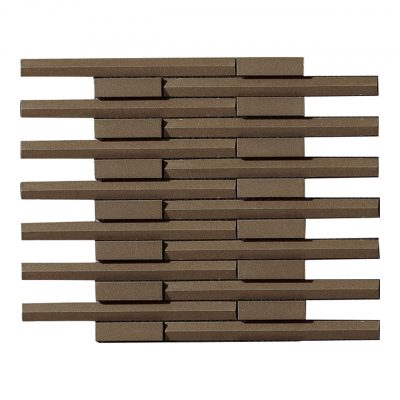

![Dimension of sheet]()
Dimension of sheet -

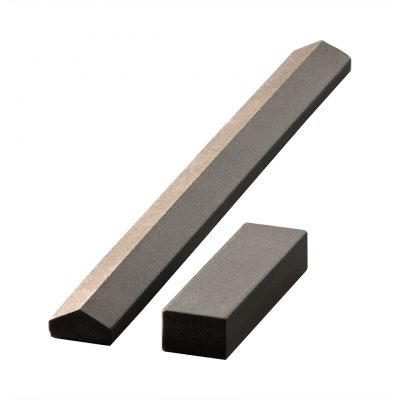

![Dimension of piece
( 2 type mix )]()
Dimension of piece
( 2 type mix ) -

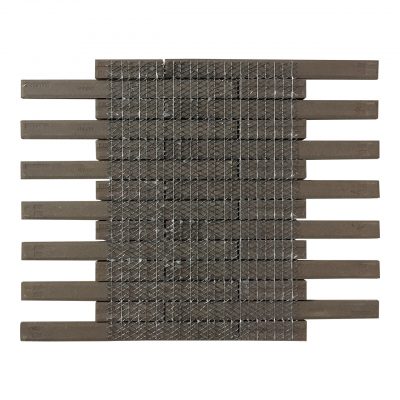

![Mounting : Back net]()
Mounting : Back net
Corner Tile HAL-C/RYS-1~RYS-3
| Size/pc | 141.5x19.5mm 70.5x19.5mm |
|---|---|
| Size/sht (Actual) | 141.5x298.1mm |
| Size/sht (Nominal) | 143.5x300mm |
| Thickness | 10mm, 13mm Mix |
| Joint | Horizontal 1.9mm Vertical 2mm |
| Quantity/m | 6.7shts |
| Quantity/ctn | 24shts |
| Weight/ctn | 15.8kg |
-

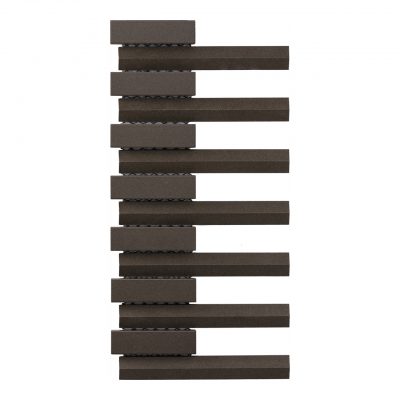

![Dimension of sheet]()
Dimension of sheet -

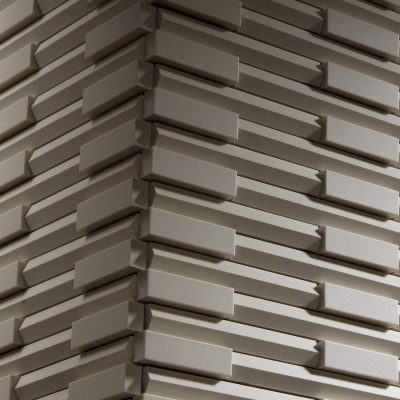

![Installation for corner
Link to more information]()
Installation for corner
Link to more information
Installation Material
Adhesive o
Mortar ×
Grouting ×
Note:
Gray net may be visible from between joints.
Colors may vary even within the same batch.
Joint widths may vary even within a sheet.
CE declared
Calculation
You can calculate necessary cartons per area. Please input square meters or square feet, then you can get
approximate number of cartons.
✽ For series with multiple shapes, please select model number before input area.
